156W 4″x7″

TN09-0156-01

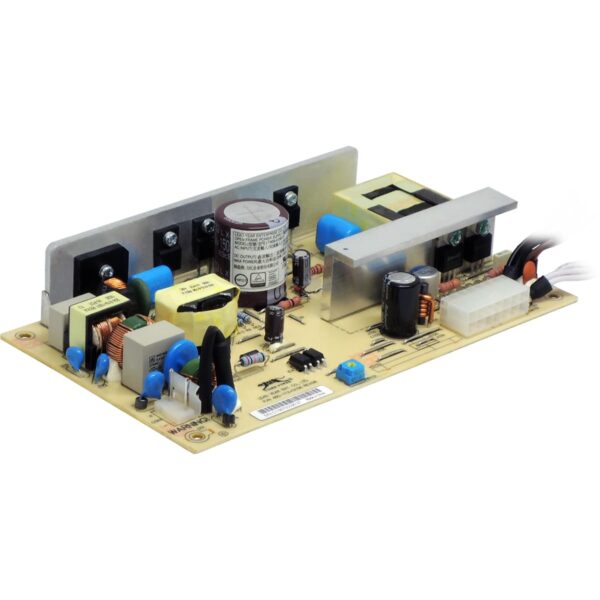

  • 156W RPS PSU
  • Complies with IEC/EN/UL 62368-1 standard
  • 4” x 7” x 1.25” with low profile size
  • 1+1 redundancy design
  • Power ok signal / AC power fault signal
  • Active power factor correction
  • Mean Time Between Failures > 400,000 Hrs
  • Japanese capacitors improve PSU reliability

Download PDF

SPECIFICATION

Model NameTN09-0156-01
OutputRated Power156 W (with 6 CFM fan x 1)
Output Voltage 12 Vdc
Maximum Output Current13 A
Over Current Limit 19 A
Minimum Output Current1 A
Ripple & Noise≦ 1%
Hold Up Time ≧ 10 ms @100% Load, 115Vac/60Hz
InputInput Voltage85~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.9 @100% Load, 115Vac/60Hz, 230Vac/50Hz
Efficiency ≧ 80 %
Inrush Current ≦ 30 A @115Vac, 25°C ; ≦ 60 A @230Vac, 25°C
EMCSurge 4KV (L/N-G), 2KV (L-N)
EMIEN55032, FCC Part 15
ESDIEC61000-4-2
EnvironmentalOperating Temperature 0~+50 °C
Storage Temperature -40~+85 °C
Operating Humidity 10~90 %RH
Storage Humidity 10~95 %RH
Operating Altitude 5,000 m
OthersDimension (W x L x H)101.6 x 177.8 x 32 mm (4 x 7 x 1.25 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 400,000 hours @230Vac/50Hz, 100Vac/60Hz, 25°C
CertificationsCB, TÜV, UL/cUL

*Specifications are subject to change without notice

MECHANICAL SPECIFICATION

APPLICATION

  • Networking
  • Telecom
  • POS
  • Printer
  • IPC
  • Industrial
  • Sewing machine
  • ATM
  • Bill counting machine
  • Currency detector
  • Gaming
