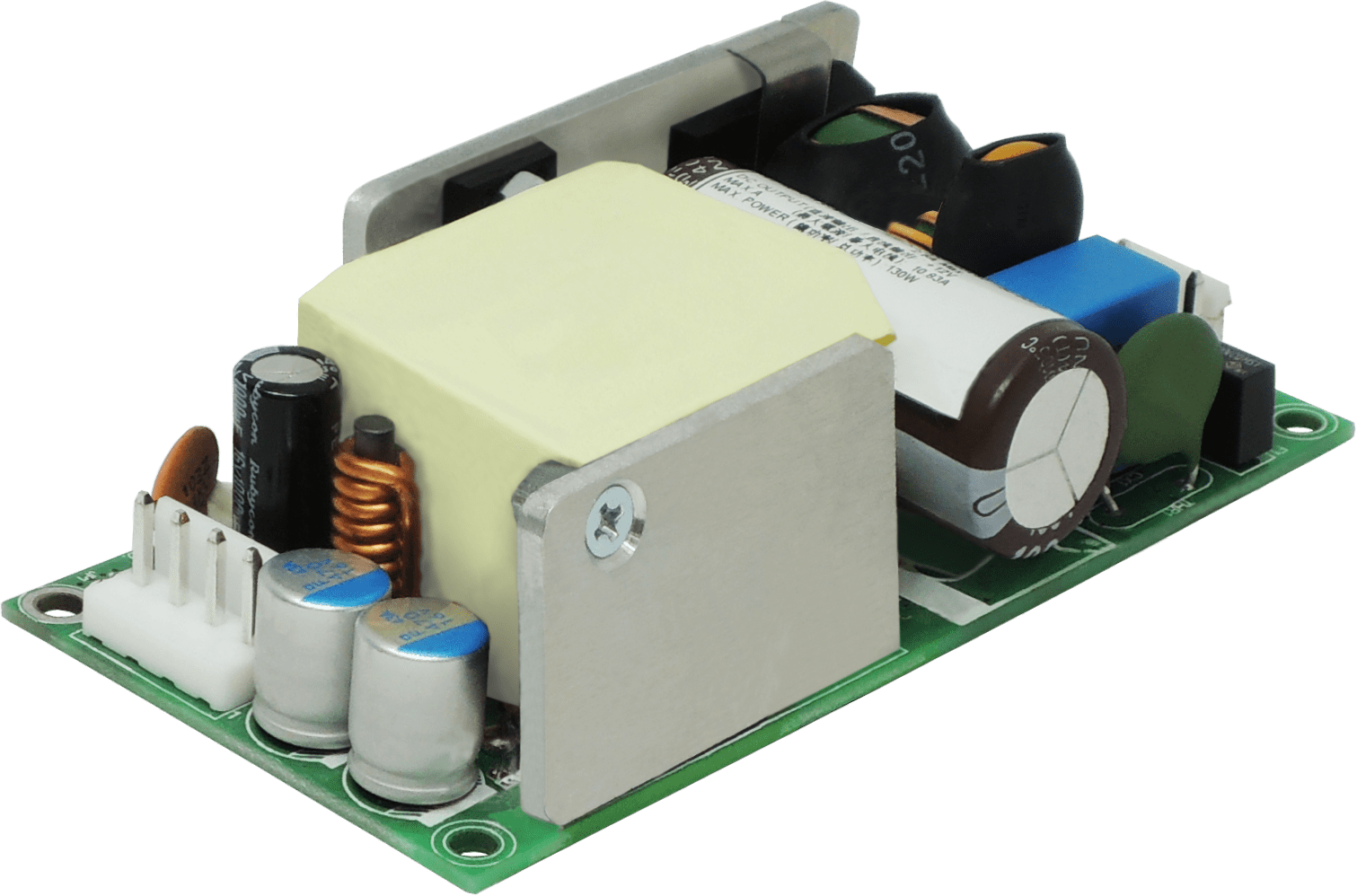

60W Class II Open Frame Power Supply (2"x4")

TN19-0060-XX-1 Series

Class II AC-DC Open Frame Power Supply.
Universal Input Voltage Range: 90–264VAC.
Wide Operating Temperature Range: -20°C to +70°C.
Comprehensive Protection Features: Short Circuit Protection (SCP), Over Current Protection (OCP), and Over Voltage Protection (OVP).
Delivers 60W Output with Natural Convection Cooling.
High Efficiency AC-DC Power Supply with Efficiency up to 89%.
Reliable Operation at Altitudes up to 5000m.
Low Profile Design with Compact Dimensions: 2" × 4" × 1.06".
Compliant with IEC 62368-1 Safety Standard.
Ideal for Industrial Equipment, Networking Devices, Embedded Systems, and Control Applications.
Compact Open Frame Power Supply Designed for Space-Constrained Environments.

60W Class II Open Frame Power Supply_Specification

‌

Model Name		TN19-0060-12-1	TN19-0060-24-1	TN19-0060-48-1
Output	Rated Power	60 W (Fanless)
	Derating Power	40W@70°C (Derate linearly from 100% load at +50°C to 50% load at +70°C)
	Output Voltage	12 Vdc	24 Vdc	48 Vdc
	Maximum Output Current	5.0 A (Max)	2.5 A (Max)	1.25 A (Max)
	Over Current Limit	≦ 10 A	≦ 5 A	≦ 3 A
	Minimum Output Current	0 A	0 A	0 A
	Ripple & Noise	≦ 1 %
	Hold Up Time	≧ 16 ms @100% Load, 115Vac/60Hz
Input	Input Voltage	90~264 Vac
	Input Frequency	47~63 Hz
	No-load Power Consumption	≦ 0.15 W
	Efficiency	≧ 87 %
	Inrush Current	≦ 30 A @115Vac/25 °C ; ≦ 60 A @230Vac/25 °C
EMC	Surge	4KV (L/N-G), 2KV (L-N)
	EMI	EN55032, FCC Part 15
	ESD	IEC61000-4-2
Environmental	Operating Temperature	-20~+70 °C
	Storage Temperature	-40~+85 °C
	Operating Humidity	20~90 %RH
	Storage Humidity	5~90 %RH
	Operating Altitude	5,000 m
Others	Dimension (W x L x H)	50.8 x 101.6 x 27.0 mm (2 x 4 x 1.06 inch) *The height excludes PCB thickness
	Mean Time Between Failures	≧ 1,000,000 hours @100% Load, 115V/50°C
	Certifications	CB, UL
	Safety Class	Class II
