SPECIFICATION
Model Name TN19-0060-12 TN19-0060-24 TN19-0060-48
Output Rated Power 60 W (Fanless)
Derating Power 40W@70°C (Derate linearly from 100% load at +50°C to 50% load at +70°C)
Output Voltage 12 Vdc 24 Vdc 48 Vdc
Maximum Output Current 5.0 A (Max) 2.5 A (Max) 1.25 A (Max)
Over Current Limit ≦ 10 A ≦ 5 A ≦ 3 A
Minimum Output Current 0 A 0 A 0 A
Ripple & Noise ≦ 1 %
Hold Up Time ≧ 16 ms @100% Load, 115Vac/60Hz
Input Input Voltage 90~264 Vac
Input Frequency 47~63 Hz
No-load Power Consumption ≦ 0.15 W
Efficiency ≧ 87 %
Inrush Current ≦ 30 A @115Vac/25 °C ; ≦ 60 A @230Vac/25 °C
EMC Surge 4KV (L/N-G), 2KV (L-N)
EMI EN55032, FCC Part 15
ESD IEC61000-4-2
Environmental Operating Temperature -20~+70 °C
Storage Temperature -40~+85 °C
Operating Humidity 20~90 %RH
Storage Humidity 5~90 %RH
Operating Altitude 5,000 m

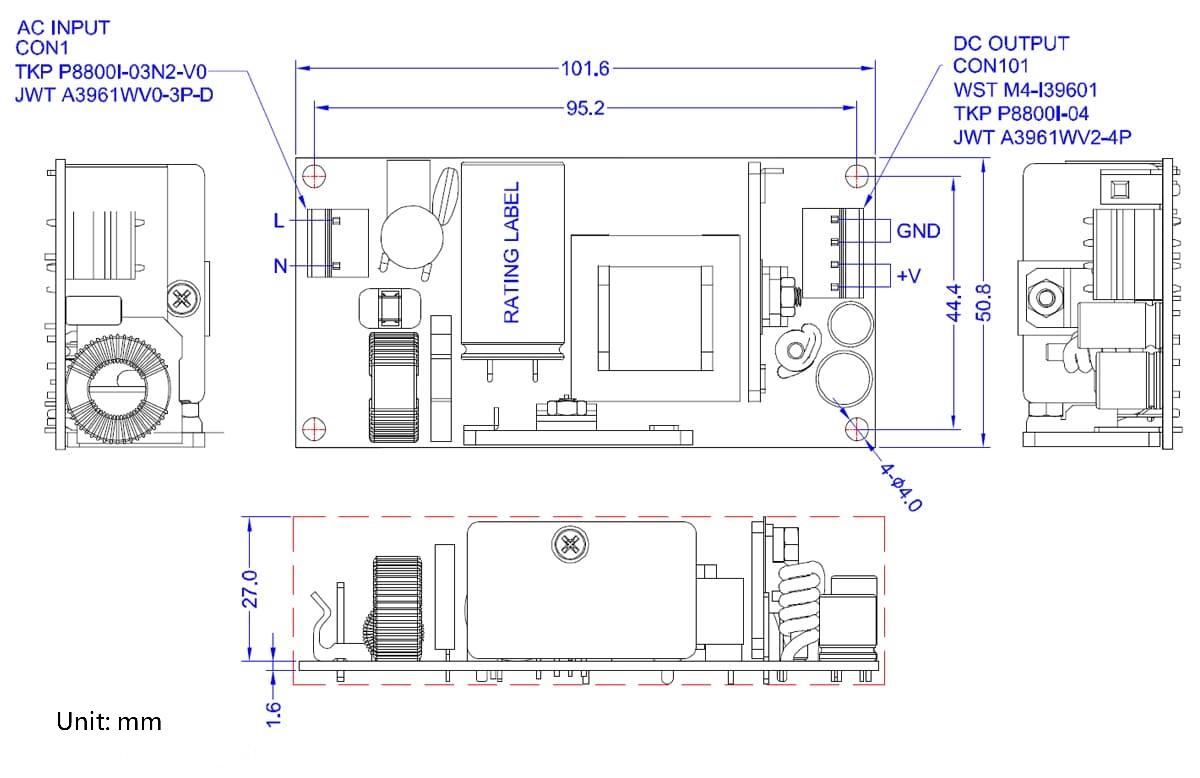

Others Dimension (W x L x H) 50.8 x 101.6 x 27.0 mm (2 x 4 x 1.06 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 100,000 hours @100% Load, 115V/50°C
Certifications CB, TÜV, UL/cUL, BSMI
*Specifications are subject to change without notice
