950W 5″x10″

TN15-0950-03

  • 950W PoE Dual Output PSU
  • Complies with IEC/EN/UL 62368-1 standard
  • Meets IEEE 802.3af/at/bt PSE requirements
  • Dual output design meets PoE insulation regulation
  • Dual outputs with different ground wires
  • RPS redundancy design (current sharing option)
  • Low EMI design enhance system stability
  • Exclusive design prolongs capacitor lifetime (≧5 yrs.)

Download PDF

Where to Buy Contact Us

SPECIFICATION

Model NameTN15-0950-03
OutputRated Power950 W (with 45 CFM)
Derating Power475W@70°C (Derate linearly from 100% load at +50°C to 50% load at +70°C)
Output Voltage 12 Vdc54 Vdc
Maximum Output Current16.7 A13.7 A
Over Current Limit 22.5 A17.8 A
Minimum Output Current0.1 A 0 A
Ripple & Noise≦ 1 %≦ 1 %
Hold Up Time ≧ 16 ms @100% Load
InputInput Voltage90~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.9 @100% Load, 115Vac
Efficiency ≧ 87 %
Inrush Current ≦ 30A @115Vac, 25°C ; ≦ 60A @230Vac, 25°C
EMCSurge 2KV (L/N-G), 1KV (L-N)
EMIEN55032, FCC Part 15
ESDIEC61000-4-2
EnvironmentalOperating Temperature -20~+70 °C
Storage Temperature -40~+85 °C
Operating Humidity 5~95 %RH
Storage Humidity 5~95 %RH
Operating Altitude 5,000 m
OthersDimension (W x L x H)127 x 254 x 41.5 mm (5 x 10 x 1.63 inch)
Mean Time Between Failures ≧ 100,000 hours @230Vac/50Hz, 25°C
CertificationsCB, TÜV, UL/cUL, UKCA

*Specifications are subject to change without notice

MECHANICAL SPECIFICATION

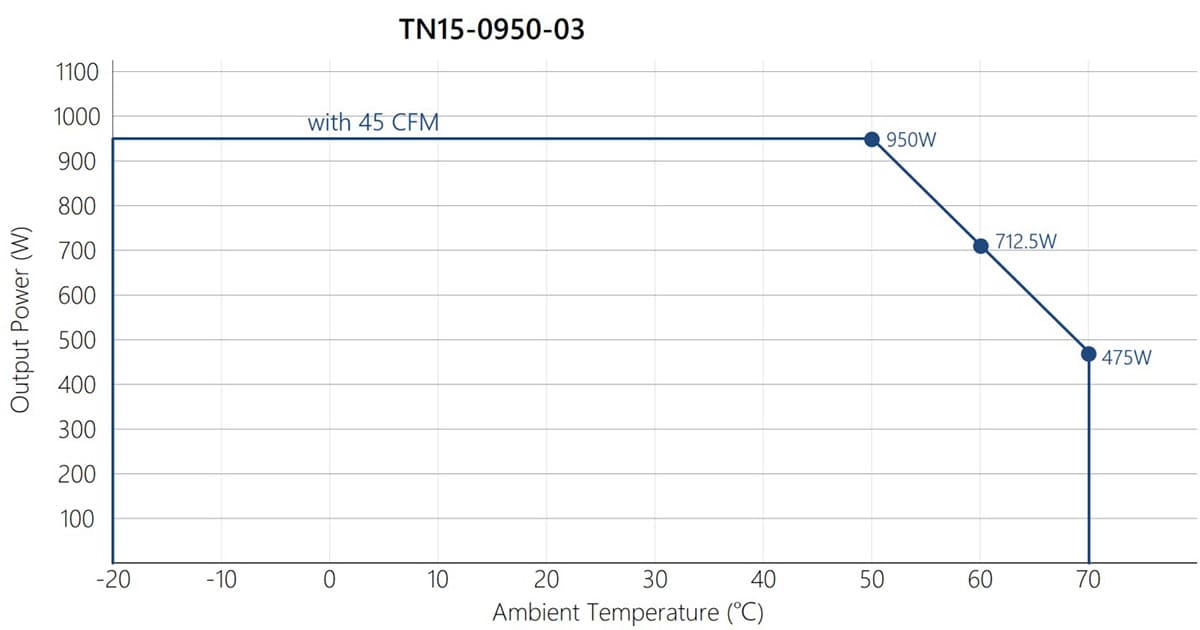

DERATING CURVE

APPLICATION

  • Networking
  • Telecom
  • POS
  • Printer
  • IPC
  • Industrial
  • Sewing machine
  • ATM
  • Bill counting machine
  • Currency detector
  • Gaming
