300W 3.15″x6.1″

TN13-0300-01

  • 300W PoE Dual Output PSU
  • Meets IEEE 802.3af/at/bt PSE requirements
  • Dual output design meets PoE insulation regulation
  • Dual outputs with different ground wires
  • 3.15 ” x 6.1 ” x 1.39” with low profile size
  • High efficiency up to 90%
  • Low EMI design enhance system stability
  • Japanese capacitors improve PSU reliability

Download PDF

SPECIFICATION

Model NameTN13-0300-01
OutputRated Power300 W (with 17.69 CFM fan x 1)
Output Voltage 12 Vdc54 Vdc
Maximum Output Current5.8 A4.7 A
Over Current Limit 12 A5~7.5 A
Minimum Output Current 0 A0.1 A
Ripple & Noise≦ 120 mVp-p≦ 400 mVp-p
Hold Up Time ≧ 10 ms
InputInput Voltage90~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.95 @100% Load, 115Vac/60Hz
Efficiency ≧ 90 % @100% Load, 230Vac/50Hz
Inrush Current ≦ 50 A @100Vac/50Hz, 25°C ; ≦ 100 A @200Vac/50Hz, 25°C
EMCSurge 4KV (L/N-G), 2KV (L-N)
EMIEN55032, FCC Part 15
ESDIEC61000-4-2
EnvironmentalOperating Temperature -10~+50 °C
Storage Temperature -40~+50 °C
Operating Humidity 20~90 %RH
Storage Humidity 20~90 %RH
Operating Altitude 5,000 m
OthersDimension (W x L x H)80 x 155 x 35.4 mm (3.15 x 6.1 x 1.39 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 100,000 hours @ 230Vac/50Hz, 25 °C
CertificationsCB, TÜV, UL/cUL, CCC

*Specifications are subject to change without notice

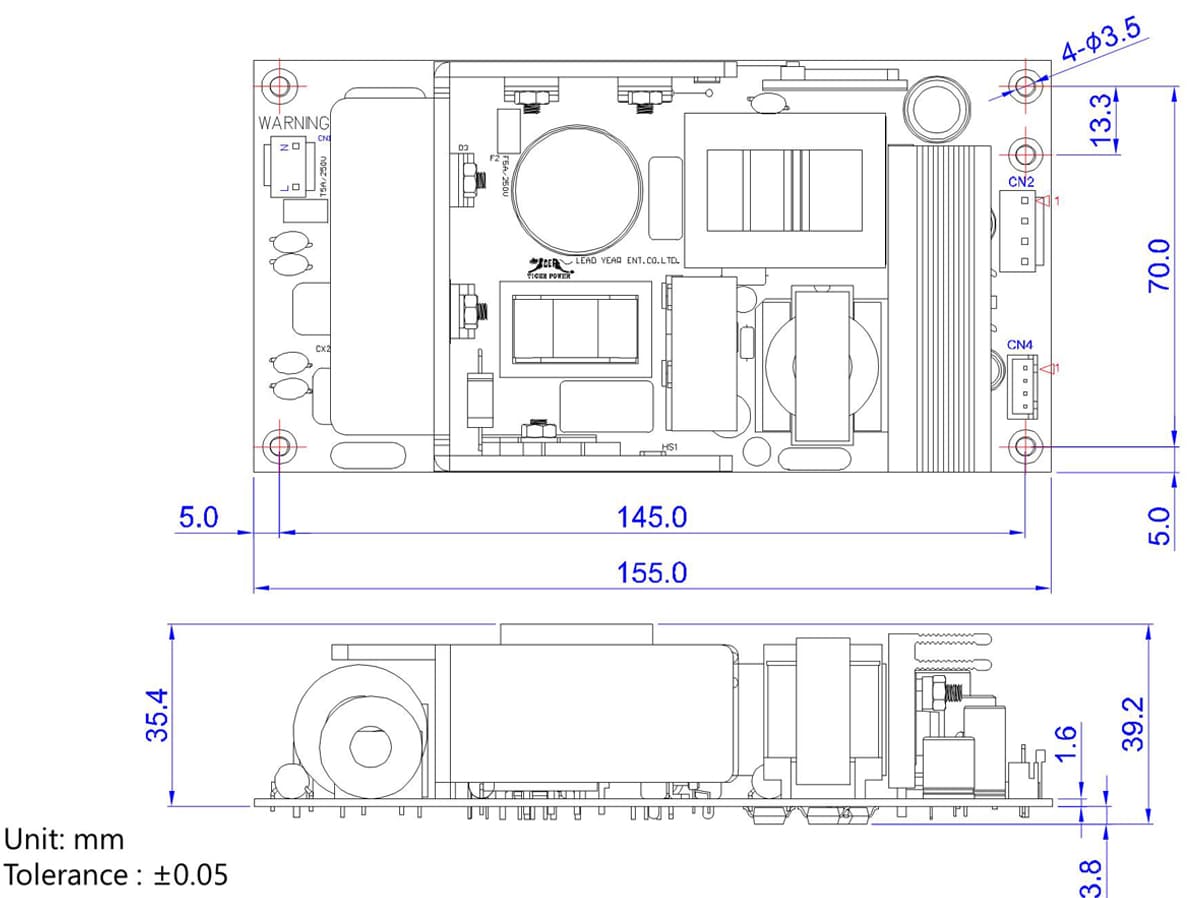

MECHANICAL SPECIFICATION

APPLICATION

  • Networking
  • Telecom
  • POS
  • Printer
  • IPC
  • Industrial
  • Sewing machine
  • ATM
  • Bill counting machine
  • Currency detector
  • Gaming
