130W 2″x4″

TN14-0130 Series

  • 130W 2″x4″ Open Frame PSU
  • Complies with IEC/EN/UL 62368-1 standard
  • 2” x 4”x 1.25” with low profile size
  • High efficiency up to 89%
  • No-load power consumption less than 0.5W
  • Mean Time Between Failures > 715,000Hrs
  • Low EMI design enhance system stability
  • Exclusive design prolongs capacitor lifetime (≧5 yrs.)

Download PDF

SPECIFICATION

Model NameTN14-0130-12TN14-0130-24TN14-0130-27TN14-0130-57
OutputRated Power130 W (with 11.3 CFM fan x 1)
Derating Power65W@70°C (Derate linearly from 100% load at +50°C to 50% load at +70°C)
Output Voltage 12 Vdc24 Vdc27 Vdc57 Vdc
Maximum Output Current10.9A5.4 A4.8 A2.3 A
Over Current Limit 110~160 %110~160 %110~160 %110~160 %
Minimum Output Current 0 A 0 A 0 A 0 A
Ripple & Noise≦ 1 %≦ 1 %≦ 1 %≦ 1 %
Hold Up Time ≧ 10 ms
InputInput Voltage80~264 Vac
Input Frequency 47~63 Hz
No-load Power Consumption ≦ 0.5 W
Efficiency ≧ 88 %≧ 88 %≧ 89 %≧ 87 %
Inrush Current ≦ 25 A @115Vac ; ≦ 50 A @230Vac, 25°C
EMCSurge 2KV (L/N-G), 1KV (L-N)
EMIEN55032, FCC Part 15
ESDIEC61000-4-2
EnvironmentalOperating Temperature 0~+70 °C
Storage Temperature -40~+85 °C
Operating Humidity 20~90 %RH
Storage Humidity 5~90 %RH
Operating Altitude 5,000 m
OthersDimension (W x L x H)50.8 x 101.6 x 32.6 mm (2 x 4 x 1.25 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 715,000 hours
CertificationsCB, TÜV, UL/cUL

*Specifications are subject to change without notice

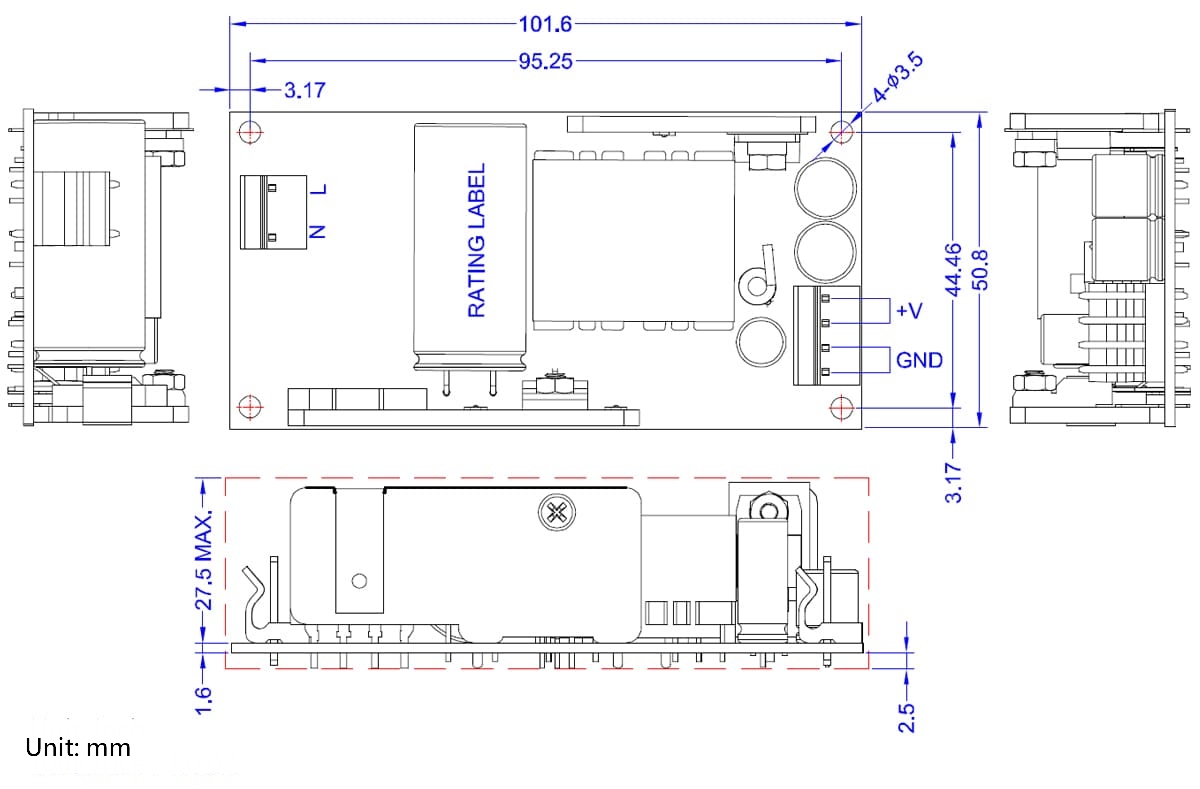

MECHANICAL SPECIFICATION

APPLICATION

  • Networking
  • Telecom
  • POS
  • Printer
  • IPC
  • Industrial
  • Sewing machine
  • ATM
  • Bill counting machine
  • Currency detector
  • Gaming

DERATING CURVE
