750W 3″x5″ New

TN24-0750-XX

  • 750W 3″x5″ Open Frame PSU
  • Universal input voltage: 90–264VAC or 127–373VDC.
  • Operating ambient temperature range: -40°C to +70°C.
  • Built-in active PFC function.
  • Protection features: output short circuit, over-current, over-voltage, and over-temperature.
  • 400W with natural convection cooling; 750W with forced air cooling (25CFM).
  • High efficiency of up to 95%.
  • PG signal and remote sensing functions.
  • High power density in a compact size: 5″x3″x1.34″ (above PCB).
  • Operating altitude up to 5000m.
  • Compliant with safety standards: IEC62368, IEC60335, and IEC61558.
  • Suitable for household and similar electrical appliances, industrial equipment, and networking PoE switching devices.

Download PDF

Where to Buy Contact Us

SPECIFICATION

Model No.Cooling MethodRated Power (W)Output Voltage/ CurrentOutput Voltage Adjustable Range (V)Efficiency at 230VAC (%) Typ.Cap. Load Max. (µF)
TN24-0750-12Natural Convection40012V / 33.3A11.4 -12.6925600
Forced air Cooling70012V / 58.3A
TN24-0750-18Natural Convection40018V / 22.2A16.2-18.9933300
Forced air Cooling70018V / 38.8A
TN24-0750-24Natural Convection45024V/18.8A22.8 - 25.2943300
Forced air Cooling75024V/31.2A
TN24-0750-36Natural Convection45036V / 12.5A34.2 - 37.894.52200
Forced air Cooling75036V / 20.8A
TN24-0750-42Natural Convection45042V / 10.7A39.9 – 44.194.52200
Forced air Cooling75042V / 17.8A
TN24-0750-48Natural Convection45048V / 9.3A45.6 - 50.4951600
Forced air Cooling75048V / 15.6A
TN24-0750-54Natural Convection45054V / 8.3A51.3 - 56.7951200
Forced air Cooling75054V / 13.9A

*Specifications are subject to change without notice

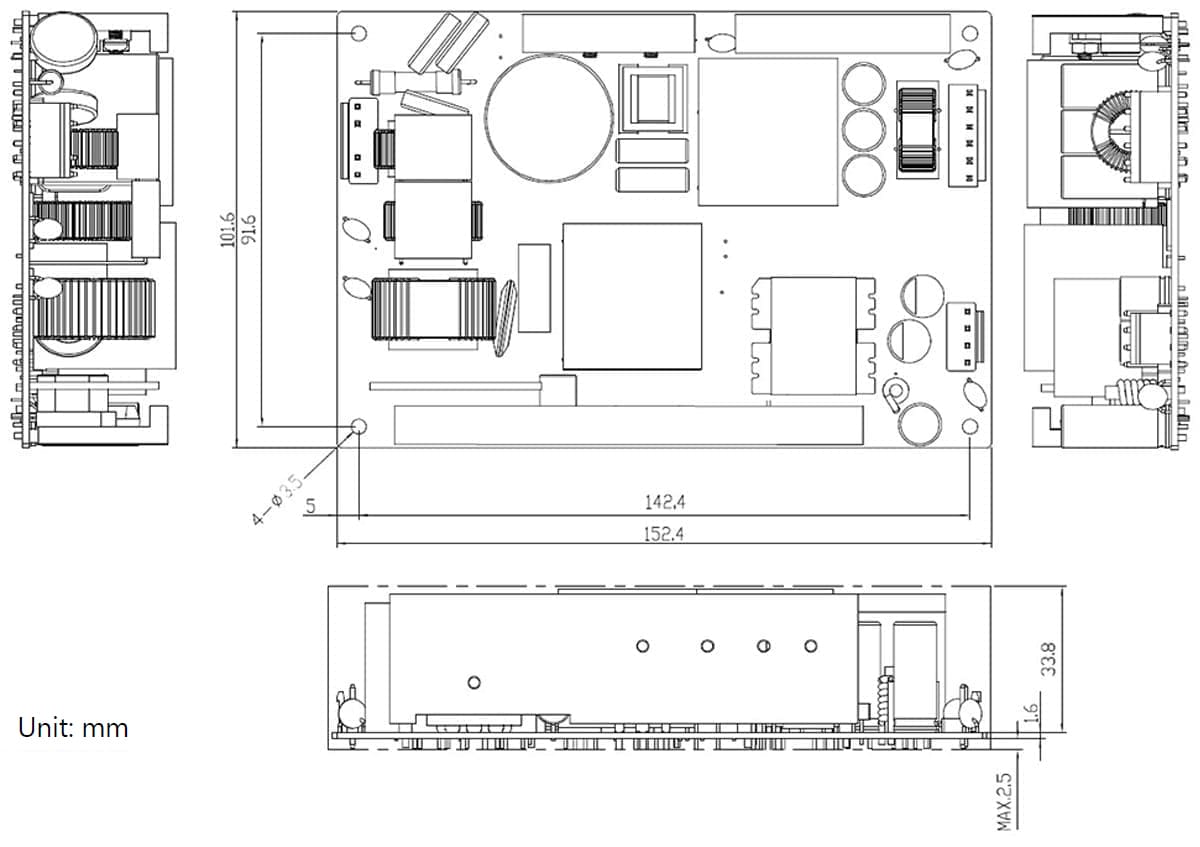

MECHANICAL SPECIFICATION

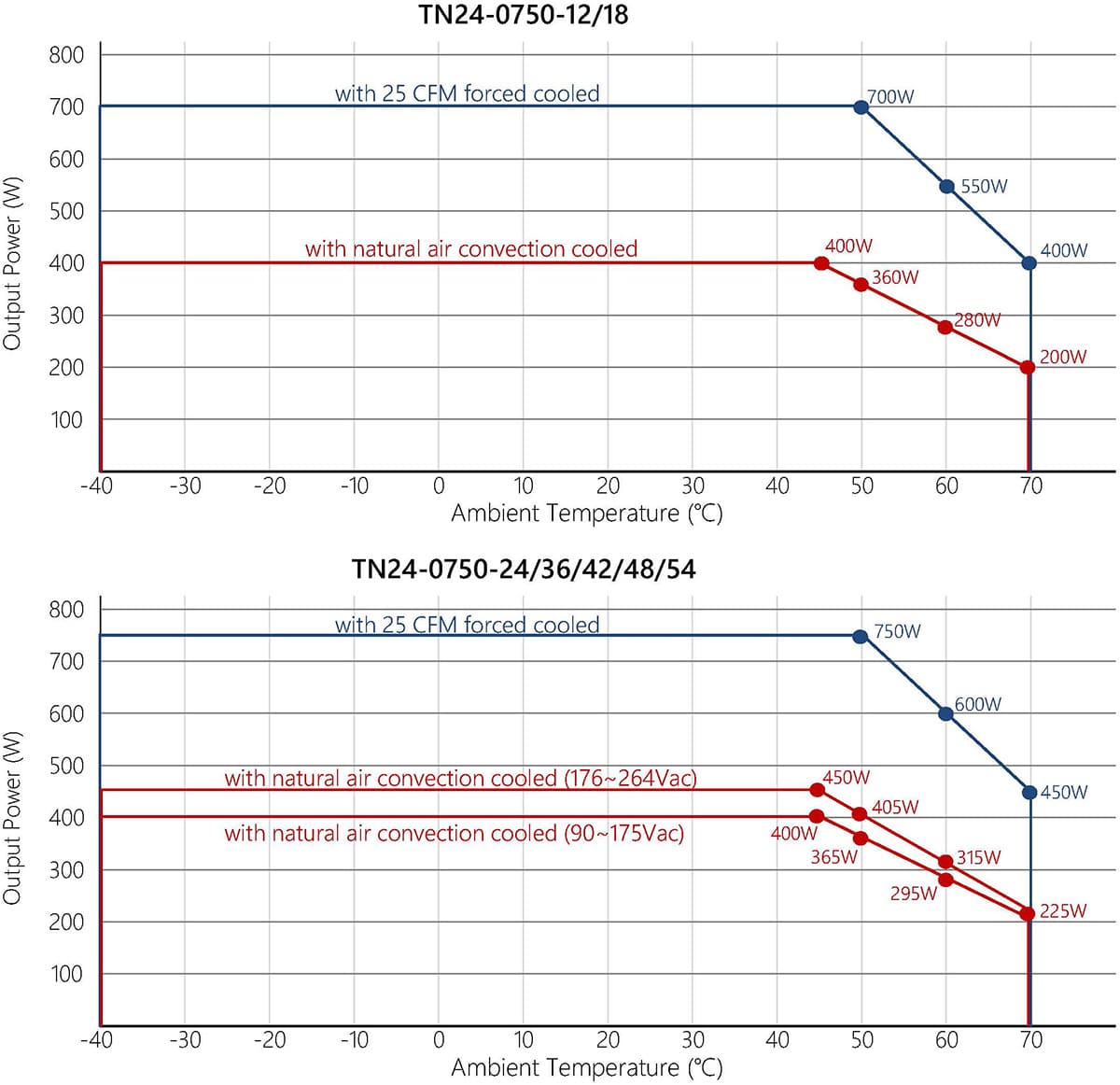

DERATING CURVE

APPLICATION

  • Networking
  • Telecom
  • POS
  • Printer
  • IPC
  • Industrial
  • Sewing machine
  • ATM
  • Bill counting machine
  • Currency detector
  • Gaming
