650W 4″x6″

TN24-0650-01

  • 650W PoE Dual Output PSU
  • Complies with IEC/UL 62368-1 standard
  • Meets IEEE 802.3af/at/bt PSE requirements
  • 4”x6”x1.33” with low profile size
  • High efficiency (more than 92%)
  • Two power supplies in parallel provide up to 1,170W
  • 1+1 redundancy design with current sharing
  • Exclusive design prolongs capacitor lifetime (≧3 yrs.)

Download PDF

Where to Buy Contact Us

SPECIFICATION

Model NameTN24-0650-01
OutputRated Power650 W (with 22.2 CFM fan x 2)
Derating Power325W@70°C (Derate linearly from 100% load at +50°C to 50% load at +70°C)
Output Voltage12 Vdc54 Vdc
Maximum Output Current8.34 A10.19 A
Over Current Limit9.0~12.5 A11.2~16.8A
Minimum Output Current0 A0 A
Ripple & NoiseLoad ≦ 5 % ; Line ≦ 1 %
Hold Up Time≧ 10 ms @80% Load, 100Vac
InputInput Voltage90~264 Vac
Input Frequency47~63 Hz
Power Factor≧ 0.98 @100% Load, 100Vac/60Hz
Efficiency≧ 92 % @100% Load, 230Vac/50Hz
Inrush Current≦ 40 A @100% Load, 100Vac, 25°C ; ≦ 100 A @100% Load, 240Vac, 25°C
EMCSurge4KV (L/N-G), 2KV (L-N)
EMIEN55032
ESDIEC61000-4-2
EnvironmentalOperating Temperature-20~+70 °C
Storage Temperature-40~+80 °C
Operating Humidity10~90 %RH
Storage Humidity5~95 %RH
Operating Altitude5,000 m
OthersDimension (W x L x H)101.6 x 152.4 x 33.8 mm (4 x 6 x 1.33 inch) *The height excludes PCB thickness
Mean Time Between Failures≧ 900,000 hours @100Vac/60Hz, 25°C
CertificationsCB, UL/cUL

*Specifications are subject to change without notice

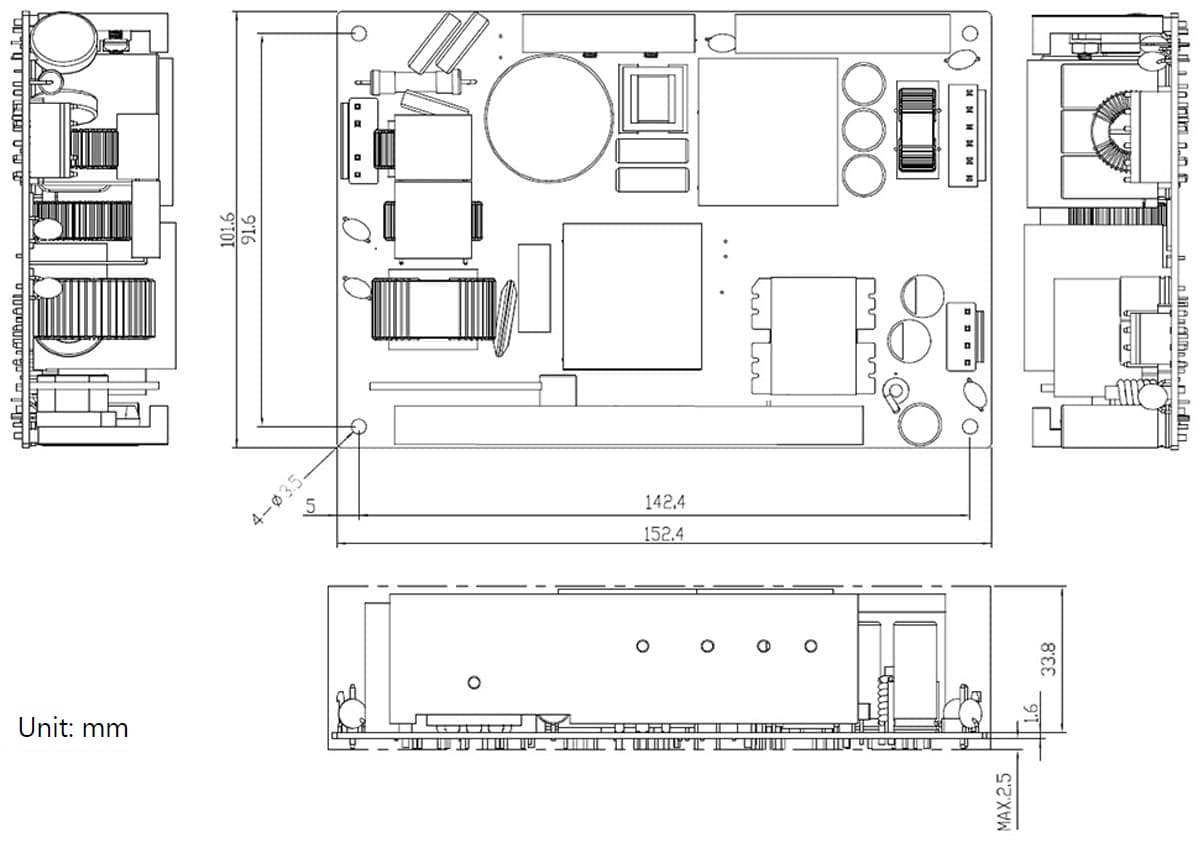

MECHANICAL SPECIFICATION
