製品仕様
型番 TN14-0130-12 TN14-0130-24 TN14-0130-27 TN14-0130-57
出力 Rated Power 130 W (with 11.3 CFM)
Derating Power 65W@70°C (Derate linearly from 100% load at +50°C to 50% load at +70°C)
Output Voltage 12 Vdc 24 Vdc 27 Vdc 57 Vdc
Maximum Output Current 10.9A 5.4 A 4.8 A 2.3 A
Over Current Limit 110~160 % 110~160 % 110~160 % 110~160 %
Minimum Output Current 0 A 0 A 0 A 0 A
Ripple & Noise ≦ 1 % ≦ 1 % ≦ 1 % ≦ 1 %
Hold Up Time ≧ 10 ms
入力 Input Voltage 80~264 Vac
Input Frequency 47~63 Hz
No-load Power Consumption ≦ 0.5 W
Efficiency ≧ 88 % ≧ 88 % ≧ 89 % ≧ 87 %
Inrush Current ≦ 25 A @115Vac ; ≦ 50 A @230Vac, 25°C
EMC Surge 2KV (L/N-G), 1KV (L-N)
EMI EN55032, FCC Part 15
ESD IEC61000-4-2
環境 Operating Temperature 0~+70 °C
Storage Temperature -40~+85 °C
Operating Humidity 20~90 %RH
Storage Humidity 5~90 %RH
Operating Altitude 5,000 m

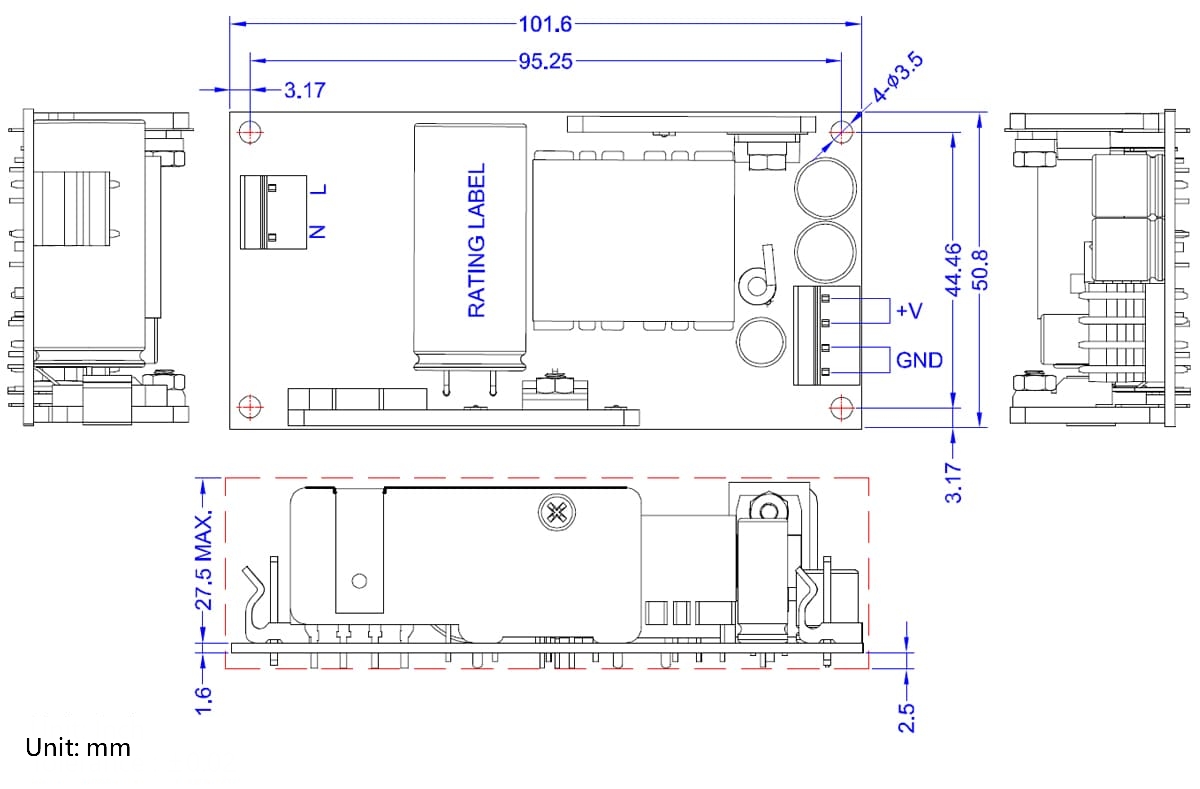

その他 Dimension (W x L x H) 50.8 x 101.6 x 32.6 mm (2 x 4 x 1.25 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 715,000 hours
Certifications CB, TÜV, UL/cUL
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
