製品仕様
型番 TN16-0450-01
出力 Rated Power 470 W (with 22.2 CFM fan x 2)
Derating Power 235W@70°C (Derate linearly from 100% load at +50°C to 50% load at +70°C)
Output Voltage 12 Vdc 54 Vdc
Maximum Output Current 8.34 A 8.34 A
Over Current Limit ≦ 15 A ≦ 12.5 A
Minimum Output Current 0.1 A 0.1 A
Ripple & Noise ≦ 1 %
Hold Up Time ≧ 10 ms @100% Load, 115Vac/60Hz
入力 Input Voltage 90~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.95 @100% Load, 115Vac/60Hz
Efficiency ≧ 90 % @230Vac/50Hz
Inrush Current ≦ 60 A @60A/115Vac, 120A/230Vac, 25°C
EMC Surge 4KV (L/N-G), 2KV (L-N)
EMI EN55032, FCC Part 15
ESD IEC61000-4-2
環境 Operating Temperature -20~+70 °C
Storage Temperature -40~+80 °C
Operating Humidity 20~90 %RH
Storage Humidity 5~90 %RH
Operating Altitude 5,000 m

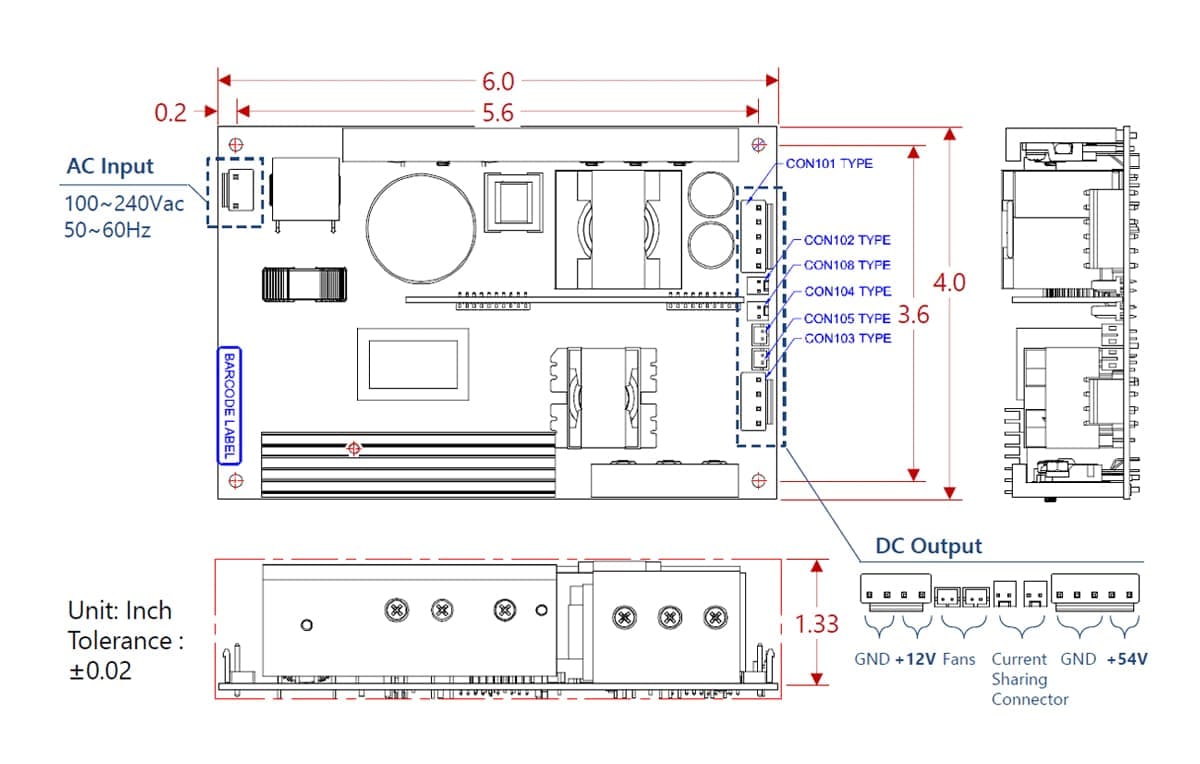

その他 Dimension (W x L x H) 101.6 x 152.4 x 33.8 mm (4 x 6 x 1.33 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 100,000 hours @230Vac/50Hz, 25°C
Certifications CB, UL/cUL, CCC
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
