製品仕様
型番 TN17-0850-01
出力 Rated Power 850 W (with 18.7 CFM)
Output Voltage 12 Vdc 55 Vdc
Maximum Output Current 8.34 A 13.63 A
Over Current Limit 9.1~12.5 A 14.0~18.1 A
Minimum Output Current 0 A 0 A
Ripple & Noise ≦ 1 % ≦ 1 %
Hold Up Time ≧ 8 ms
入力 Input Voltage 90~140 Vac, 180~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.9 @100% Load, 115Vac/60Hz
Efficiency ≧ 88 % @100% Load, 230Vac/50Hz
Inrush Current ≦ 30 A @115Vac/60Hz, 25°C ; ≦ 60 A @230Vac/50Hz, 25°C
EMC Surge 4KV (L/N-G), 2KV (L-N)
EMI EN55032, FCC Part 15
ESD IEC61000-4-2
環境 Operating Temperature 0~+50 °C
Storage Temperature -40~+80 °C
Operating Humidity 20~80 %RH
Storage Humidity 5~95 %RH
Operating Altitude 5,000 m

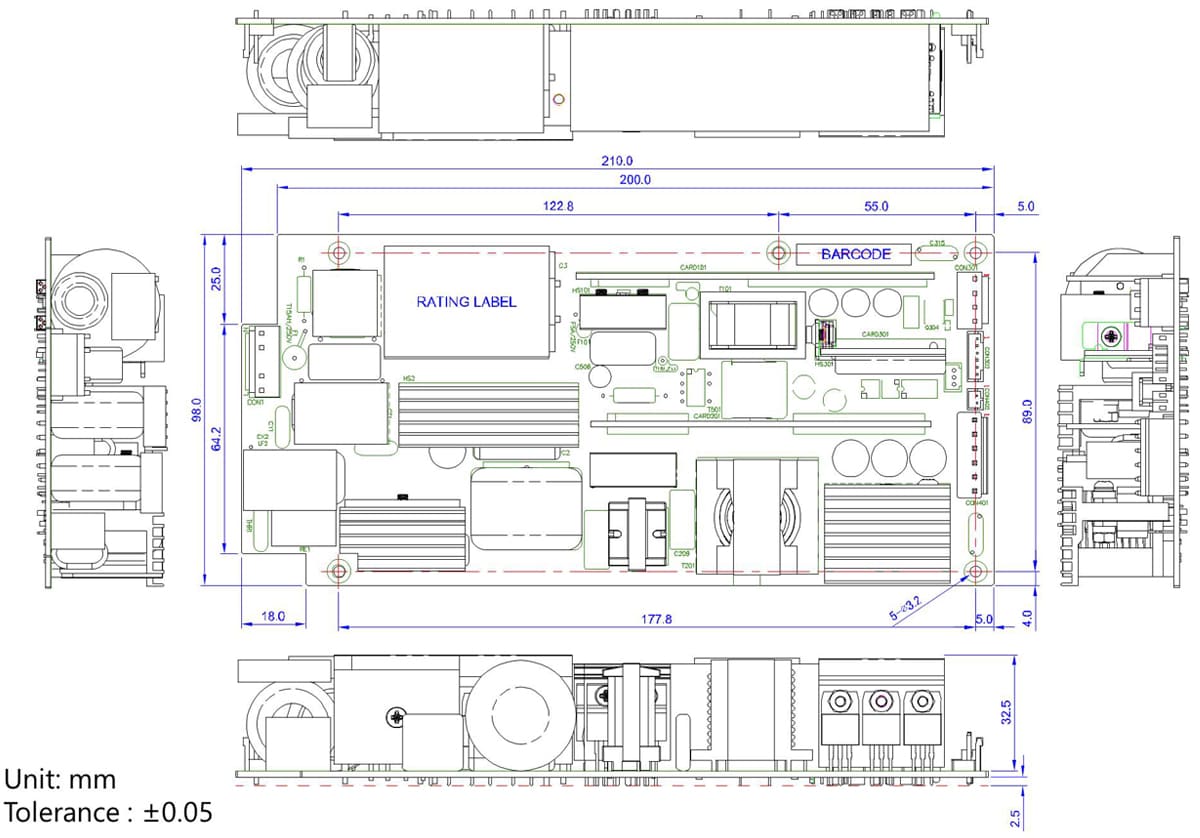

その他 Dimension (W x L x H) 98 x 210 x 33.8 mm (3.86 x 8.27 x 1.33 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 100,000 hours @230Vac/50Hz, 25 °C
Certifications CB, TÜV, UL/cUL
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
