製品仕様
型番 TN09-0589-02
出力 Rated Power 589 W (with 30 CFM)
Derating Power 412.3W@70°C (Derate linearly from 100% load at +50°C to 50% load at +70°C)
Output Voltage 12 Vdc 54 Vdc
Maximum Output Current 14 A 7.8 A
Over Current Limit ≦ 20 A ≦ 12 A
Minimum Output Current 0 A 0 A
Ripple & Noise ≦ 120 mVp-p ≦ 500 mVp-p
Hold Up Time ≧ 20 ms @100% Load
入力 Input Voltage 90~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.98 @100% Load, 115Vac
Efficiency ≧ 87 %
Inrush Current ≦ 30 A @230Vac, 25°C
EMC Surge 4KV (L/N-G), 2KV (L-N)
EMI EN55032, FCC Part 15
ESD IEC61000-4-2
環境 Operating Temperature -20~+70 °C
Storage Temperature -40~+85 °C
Operating Humidity 5~95 %RH
Storage Humidity 5~95 %RH
Operating Altitude 5,000 m

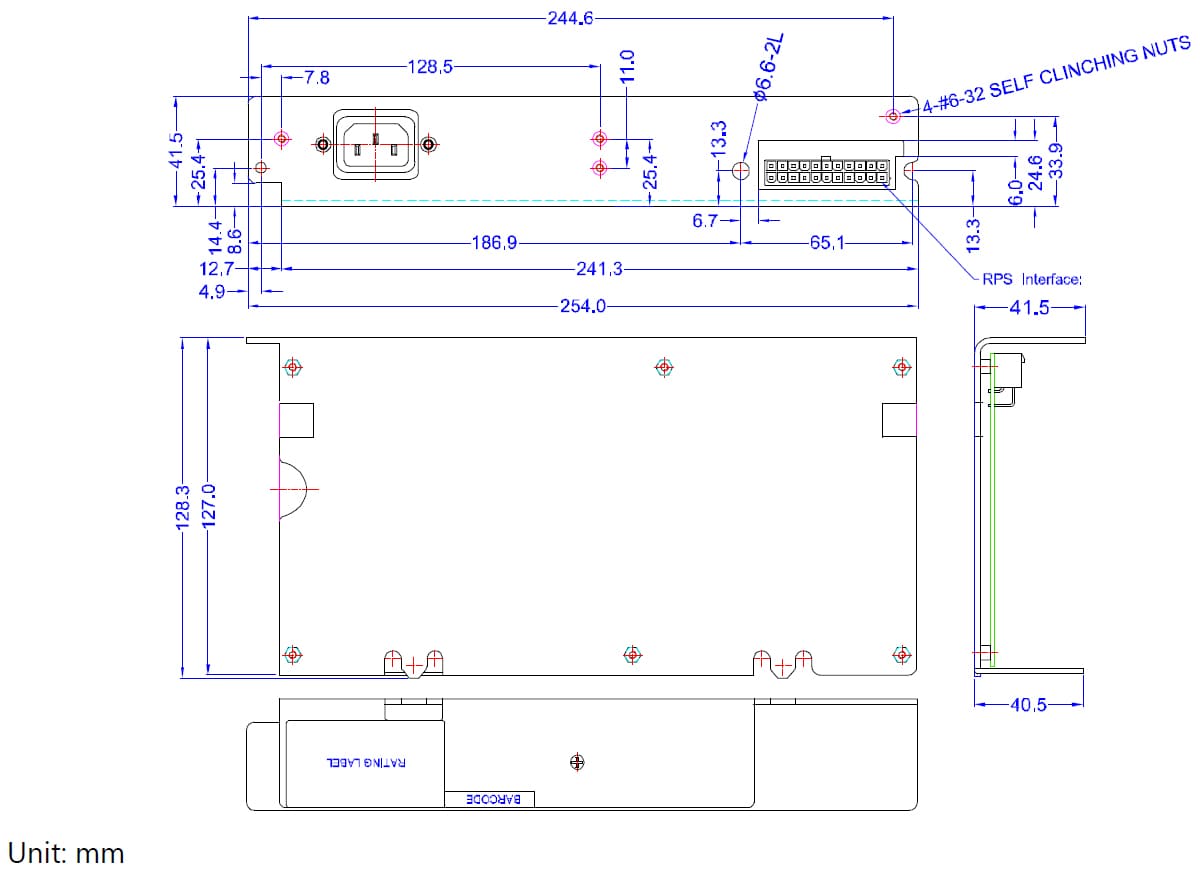

その他 Dimension (W x L x H) 129 x 254 x 41.5 mm (5 x 10 x 1.63 inch)
Mean Time Between Failures ≧ 100,000 hours @230Vac/50Hz, 25°C
Certifications CB, UL/cUL, UKCA
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
