製品仕様
型番 TN13-0300-01
出力 Rated Power 300 W (with 17.69 CFM)
Output Voltage 12 Vdc 54 Vdc
Maximum Output Current 5.8 A 4.7 A
Over Current Limit 12 A 5~7.5 A
Minimum Output Current 0 A 0.1 A
Ripple & Noise ≦ 120 mVp-p ≦ 400 mVp-p
Hold Up Time ≧ 10 ms
入力 Input Voltage 90~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.95 @100% Load, 115Vac/60Hz
Efficiency ≧ 90 % @100% Load, 230Vac/50Hz
Inrush Current ≦ 50 A @100Vac/50Hz, 25°C ; ≦ 100 A @200Vac/50Hz, 25°C
EMC Surge 4KV (L/N-G), 2KV (L-N)
EMI EN55032, FCC Part 15
ESD IEC61000-4-2
環境 Operating Temperature -10~+50 °C
Storage Temperature -40~+50 °C
Operating Humidity 20~90 %RH
Storage Humidity 20~90 %RH
Operating Altitude 5,000 m

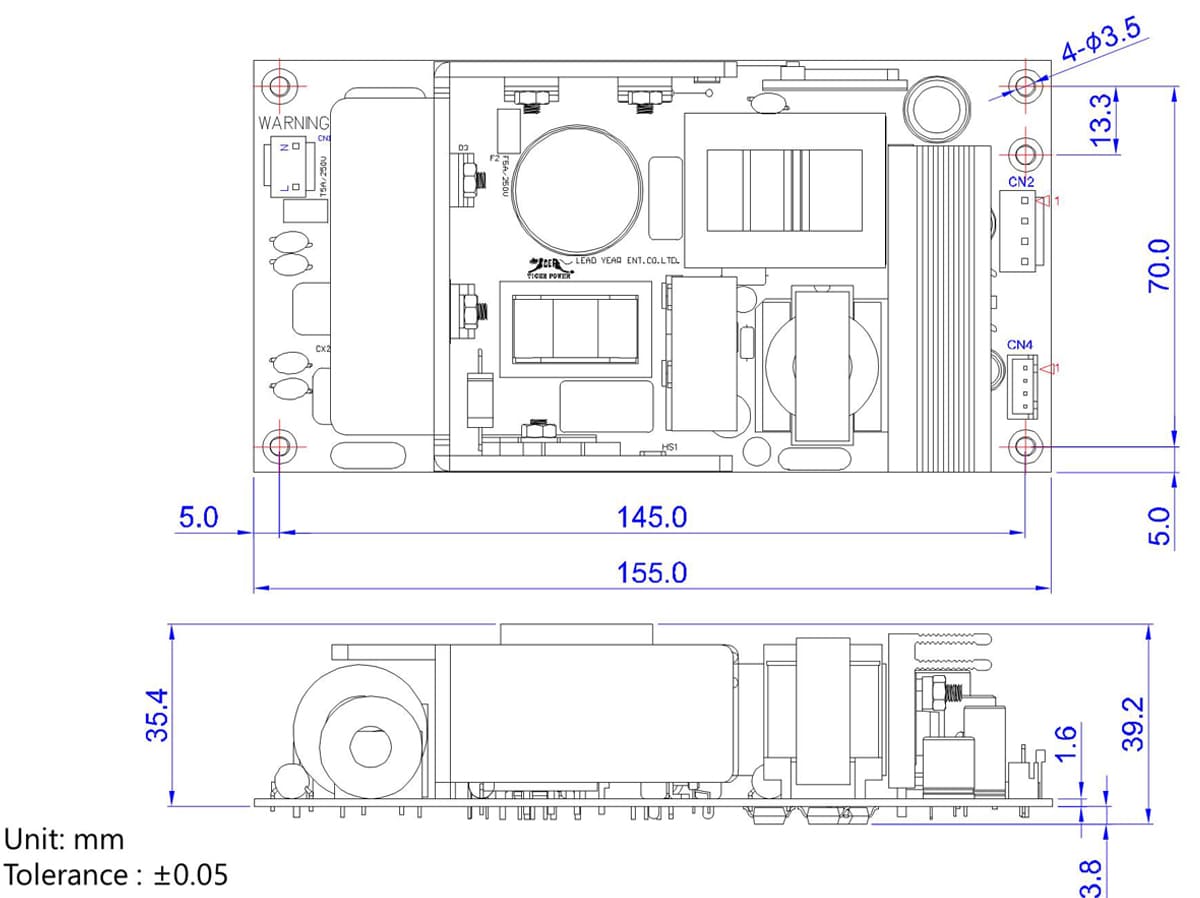

その他 Dimension (W x L x H) 80 x 155 x 33.8 mm (3.15 x 6.1 x 1.33 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 100,000 hours @ 230Vac/50Hz, 25 °C
Certifications CB, TÜV, UL/cUL, CCC
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
