製品仕様
型番 TG20-1100-01/02
出力 Rated Power 1100 W
Output Voltage 12 Vsb 12 Vdc
Maximum Output Current 3 A 90 A
Over Current Limit 110~180 % 110~140 %
Minimum Output Current 0.1 A 1 A
Ripple & Noise ≦ 1 % & ≦ 2 %
Hold Up Time ≧ 10 ms @50% Load
入力 Input Voltage 90~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.99 @100% Load
Efficiency ≧ 94% @50% Load
Inrush Current ≦ 55A @90~264Vac, 25°C
EMC Surge 2KV (L/N-G), 1KV (L-N)
EMI EN55032, FCC Part 15
ESD IEC61000-4-2
環境 Operating Temperature -20~+60 °C
Storage Temperature -40~+85 °C
Operating Humidity 5~95 %RH
Storage Humidity 5~95 %RH
Operating Altitude 5,000 m
その他 Fan Airflow Direction★ TG20-1100-01: Air Flow Out (AFO) ; TG20-1100-02: Air Flow In (AFI)

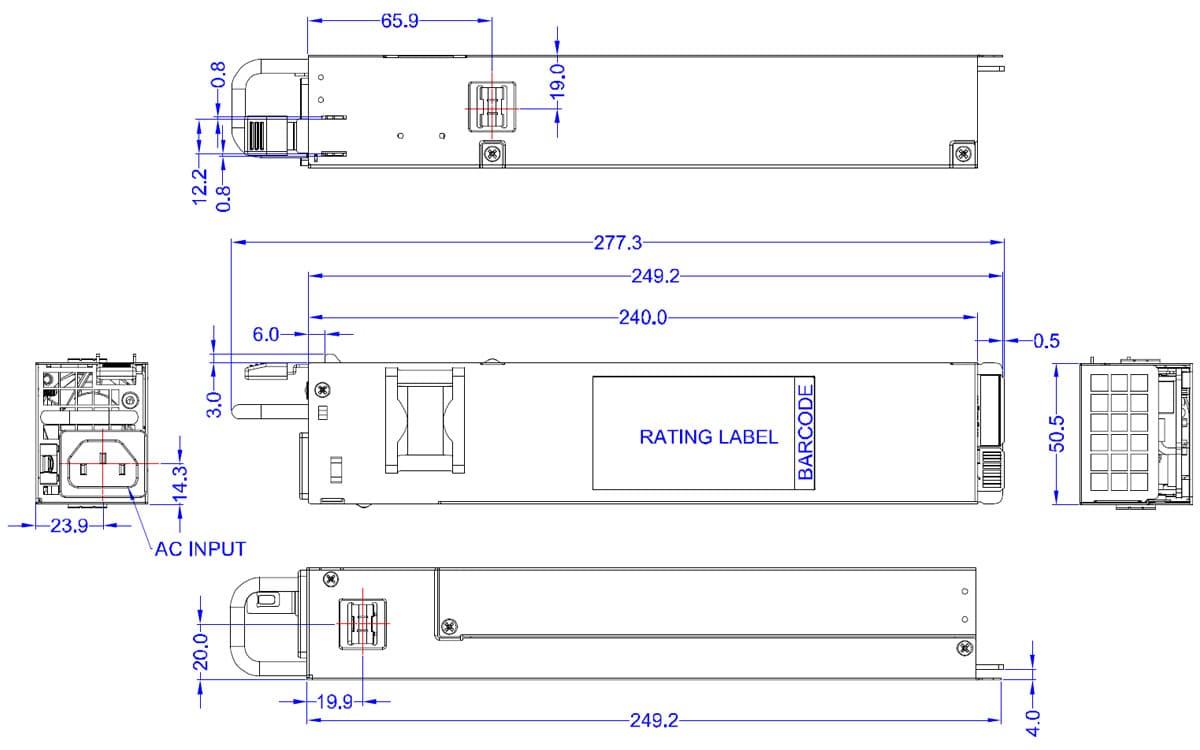

Dimension (W x L x H) 50.5 x 240 x 40 mm (2 x 9.45 x 1.57 inch) ; 1U
Mean Time Between Failures ≧ 100,000 hours @100% Load, 50°C
Certifications CB, TÜV, UL/cUL
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
