製品仕様
型番 TC22-0800-01
出力 Rated Power 800 W
Output Voltage 3.3 Vdc 5 Vdc 12 Vdc -12 Vdc 5 Vsb
Maximum Output Current 25 A 25 A 65 A 0.8 A 3.5 A
Maximum Power 170 W 780 W 9.6 W 17.5 W
Over Current Protection 27.5~37.5 A 27.5~37.5 A 91 A NA NA
Minimum Load Requirement 1 A 1 A 1 A 0 A 0.1 A
Ripple & Noise ≦ 50 mVp-p ≦ 50 mVp-p ≦ 120 mVp-p ≦ 120 mVp-p ≦ 50 mVp-p
Hold Up Time ≧ 12 ms @70% Load
入力 Input Voltage 100~240 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.95 @50% Load
Efficiency Meets 80Plus Platinum
Inrush Current ≦ 35 A @100% Load, 25°C
EMC Surge 2KV (L/N-G), 1KV (L-N)
EMI EN55032, FCC Part 15
ESD IEC61000-4-2
環境 Operating Temperature 0~+45 °C
Storage Temperature -40~+80 °C
Operating Humidity 10~90 %RH
Storage Humidity 5~95 %RH
Operating Altitude 5,000 m

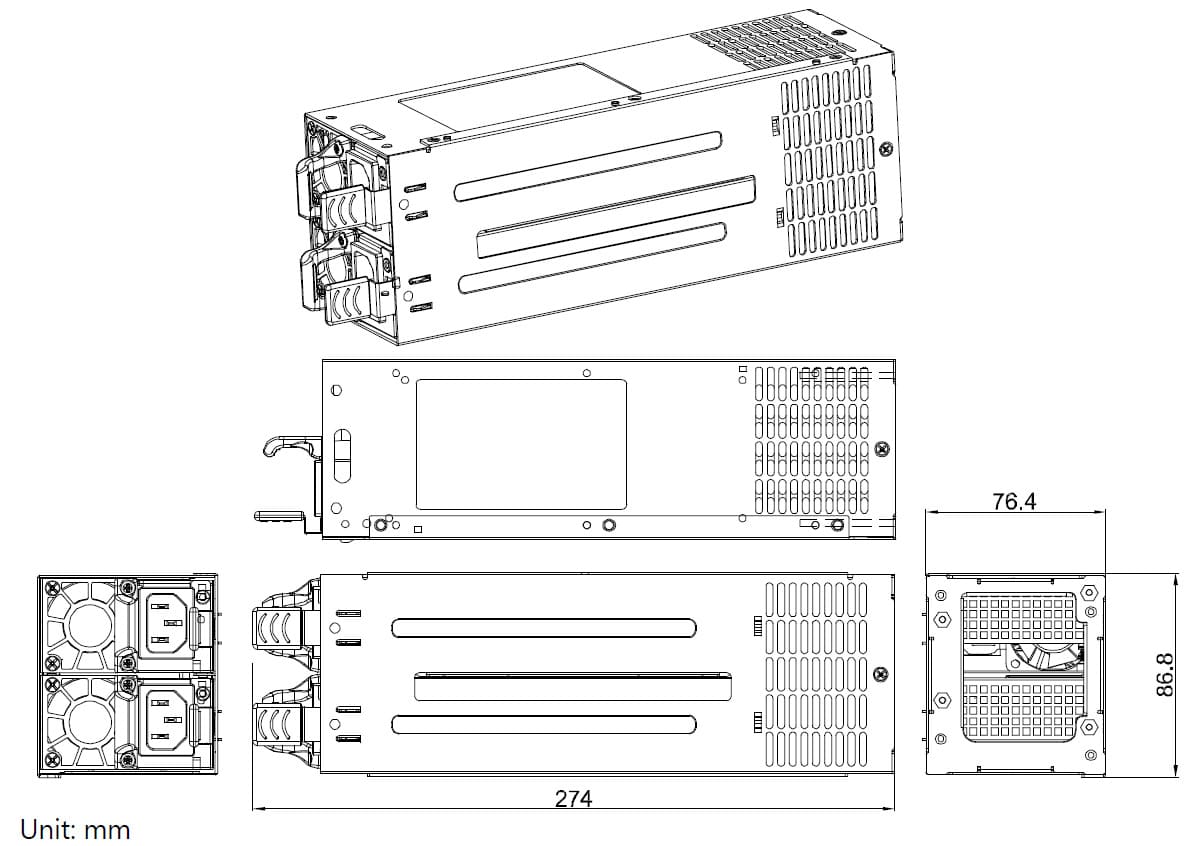

その他 Dimension (W x L x H) 76.4 x 245 x 85 mm (3.01 x 9.65 x 3.35 inch) ; 2U
Mean Time Between Failures ≧ 300,000 hours @100% Load, 25°C
Certifications CB, TÜV, UL/cUL
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
