製品仕様
型番 TG17-0800-01
出力 Rated Power 800 W
Output Voltage 12 Vsb 12 Vdc
Maximum Output Current 2.1 A 65 A
Over Current Limit ≦ 3~5 A ≦ 75~79 A
Minimum Output Current 0 A 0 A
Ripple & Noise ≦ 1 %
Hold Up Time ≧ 11 ms @70% Load, 115Vac
入力 Input Voltage 90~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.99 @100% Load
Efficiency ≧ 94 % @50% Load, 230Vac ; Meet 80Plus Platinum
Inrush Current ≦ 35 A @264Vac, 25°C
EMC Surge 2KV (L/N-G), 1KV (L-N)
EMI EN55032
ESD IEC61000-4-2
環境 Operating Temperature 0~+50 °C
Storage Temperature -40~+70 °C
Operating Humidity 10~90 %RH
Storage Humidity 5~95 %RH
Operating Altitude 5,000 m

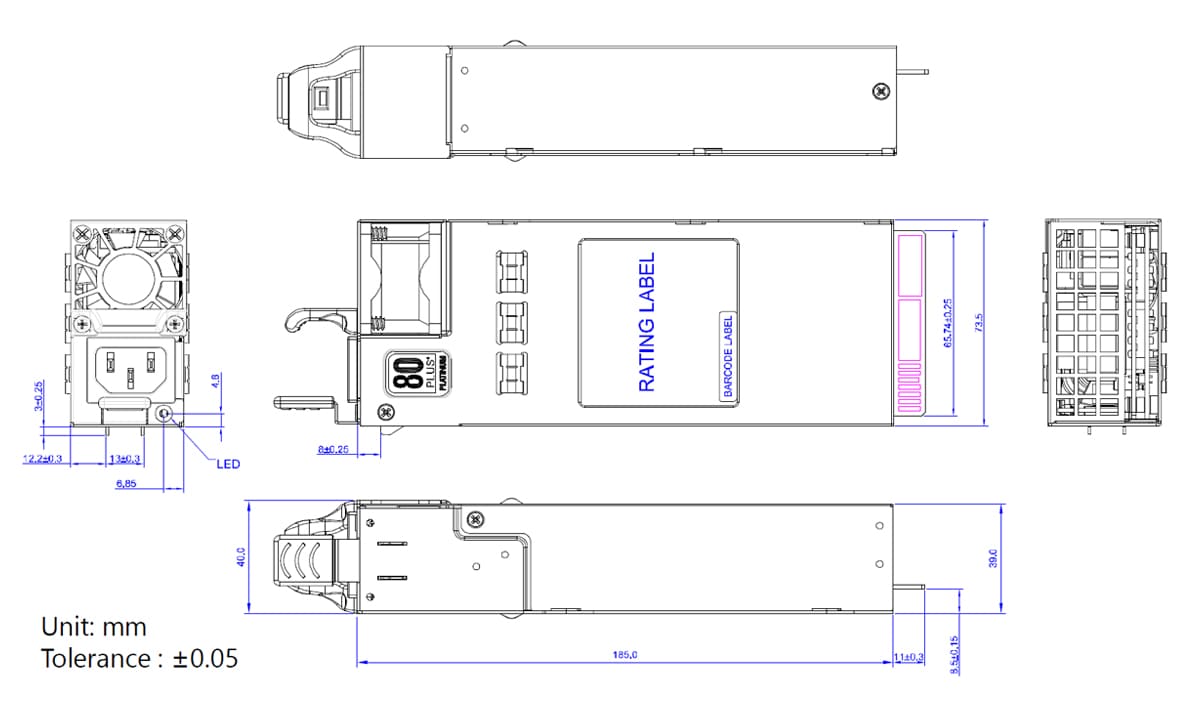

その他 Dimension (W x L x H) 73.5 x 185 x 40 mm (2.89 x 7.28 x 1.57 inch) ; 1U
Mean Time Between Failures ≧ 100,000 hours
Certifications CB, TÜV, UL/cUL, CCC
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
