製品仕様
型番 TN19-1000-01
出力 Rated Power 1,000 W (with 18.7 CFM fan x 2)
Output Voltage 56 Vdc
Maximum Output Current 17.8 A
Over Current Limit 25 A
Minimum Output Current 0 A
Ripple & Noise ≦ 500 mVp-p
Hold Up Time ≧ 10 ms @100% Load, 100Vac
入力 Input Voltage 90~264 Vac
Input Frequency 47~63 Hz
Power Factor ≧ 0.95 @100% Load, 100Vac/60Hz
Efficiency ≧ 94% @100% Load, 230Vac/50Hz
Inrush Current ≦ 20 A @100Vac, 25°C
EMC Surge 4KV (L/N-G), 2KV (L-N)
EMI EN55032
ESD IEC61000-4-2
環境 Operating Temperature 0 ~+50 °C
Storage Temperature -40~+80 °C
Operating Humidity 10~90 %RH
Storage Humidity 5~95 %RH
Operating Altitude 5,000 m

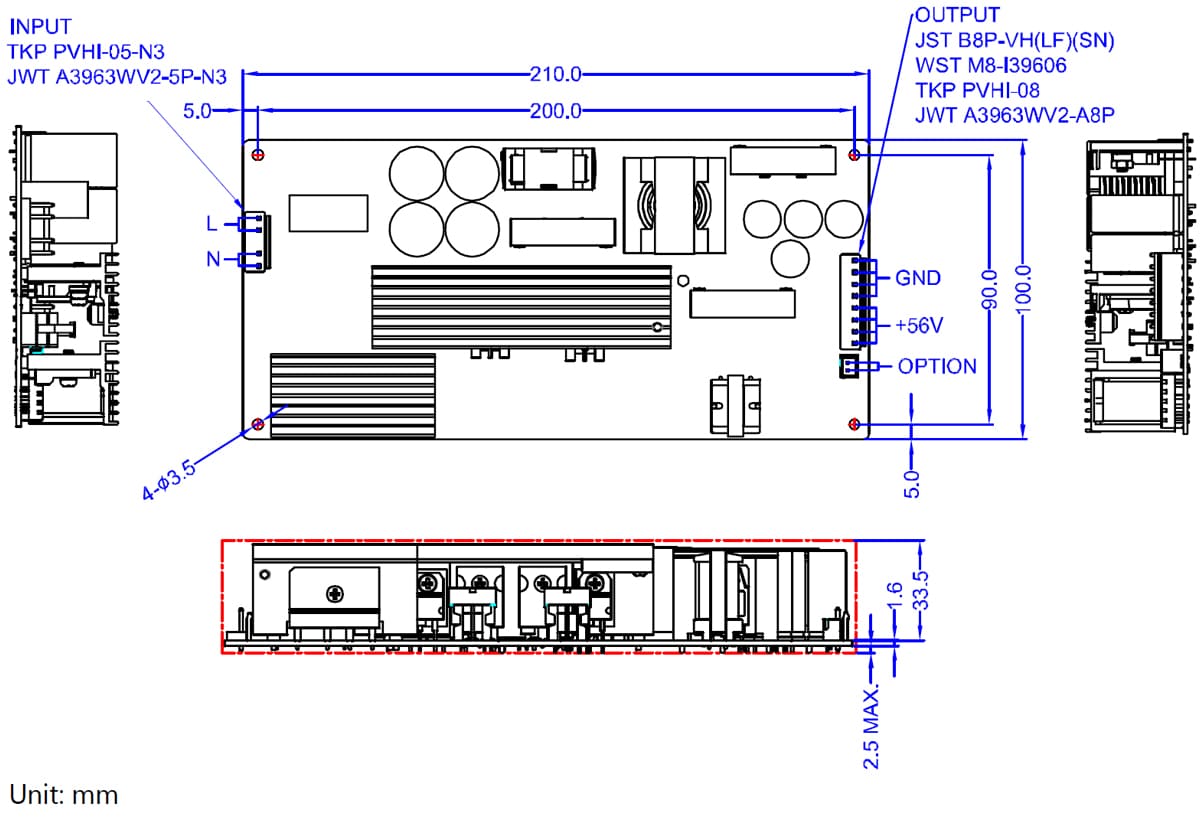

その他 Dimension (W x L x H) 100 x 210 x 33.5 mm (3.94 x 8.27 x 1.32 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 1,000,000 hours @100Vac/60Hz, 25°C
Certifications CB, UL/cUL
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
