製品仕様
Model Name TN24-0500-12 TN24-0500-24 TN24-0500-36 TN24-0500-42 TN24-0500-48
Output Rated Power 400W (22CFMx2) 500W (with 22 CFM fan x 2) ; 240W (Fanless)

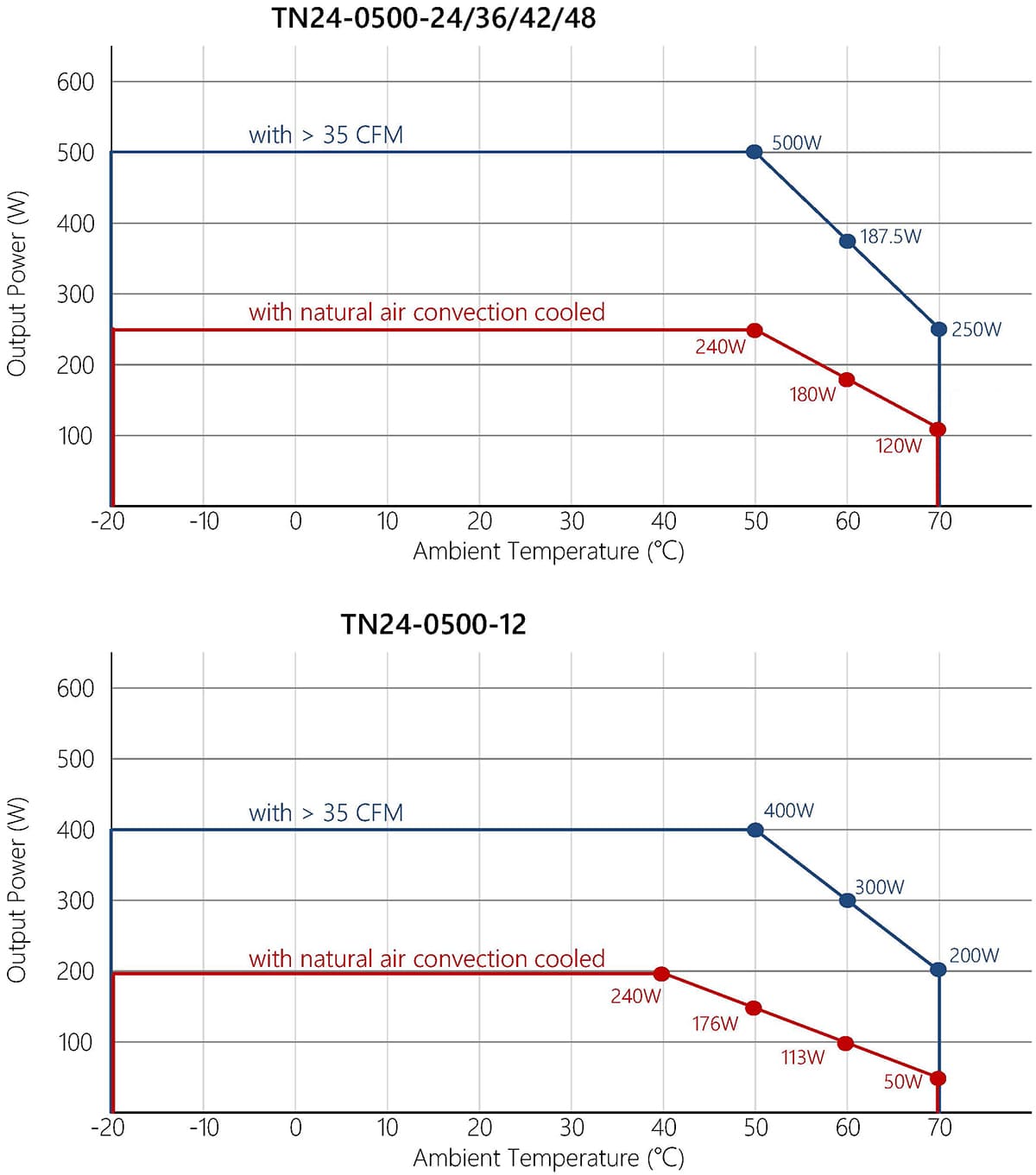

Derating Power (>35 CFM) 200W@70°C 250W@70°C
Output Voltage 12 Vdc 24Vdc 36 Vdc 42 Vdc 48 Vdc
Maximum Output Current 33.33 A 20.84 A 13.89 A 11.90 A 10.42 A
Over Current Limit 101~135 %
Minimum Output Current 12:00 AM
High Peak Power (Fanless) 480 W (5s, Dmax=0.4)
Ripple & Noise ≦ 1.5%@-20~0 °C ; ≦ 1%@0~+70 °C
Hold-up Time ≧ 10 ms@100Vac/200Vac, 25 °C
Input Input Voltage 85~265 Vac ; 120~370 Vdc
Input Frequency 47~63 Hz
Power Factor ≧ 0.98@100% Load, 100Vac, 25°C ; ≧ 0.93@100% Load, 200Vac, 25°C
Efficiency (240Vac/Fanless) 93% 94% 93% 93% 94%
Inrush Current ≦ 15 A @100Vac, 25°C ; ≦ 30 A @200Vac, 25°C
EMC Surge 4KV (L/N-G), 2KV (L-N)
EMI EN55032
ESD IEC61000-4-2
Environmental Operating Temperature -20~+70 °C
Storage Temperature -40~+85 °C
Operating Humidity 10~90 %RH
Storage Humidity 5~95 %RH
Operating Altitude 5,000 m

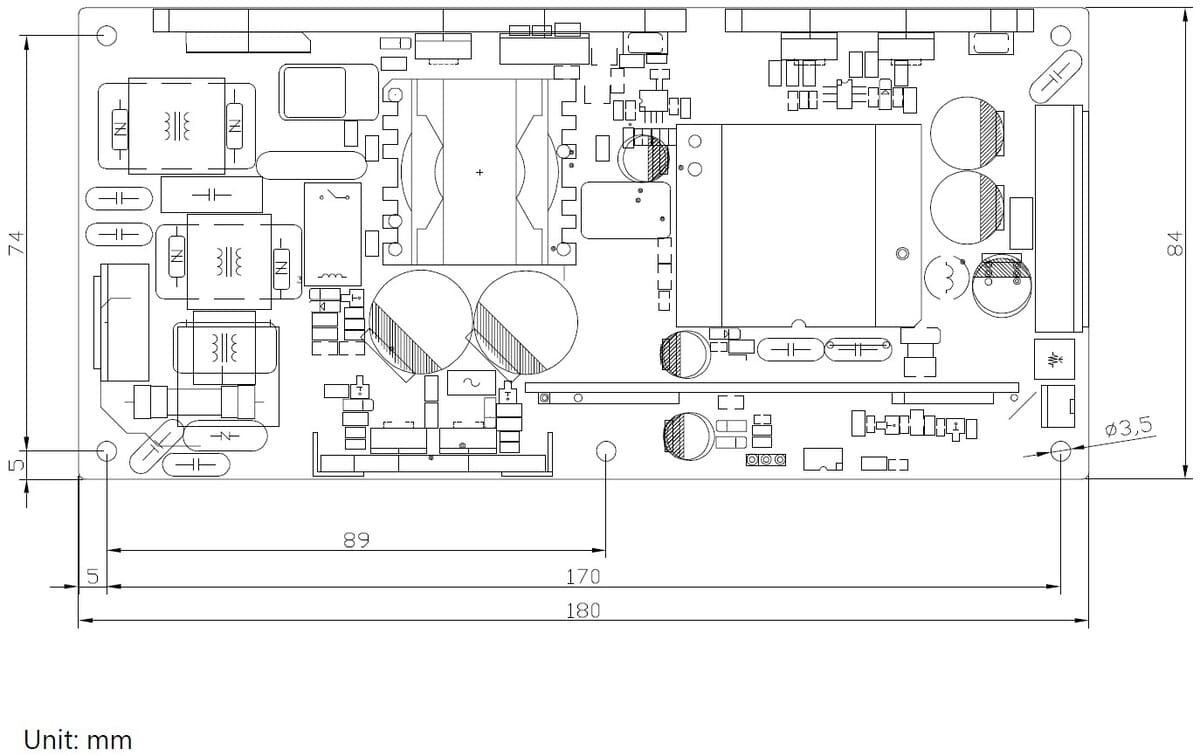

Others Dimension (W x L x H) 84 x 180 x 33 mm (3.31 x 7.09 x 1.3 inch) *The height excludes PCB thickness
Mean Time Between Failures ≧ 900,000 hours
Certifications CB, UL/cUL
*製品の仕様は、事前の予告なしに 変更さ れ る場 合があります。
